Product Features
- Suitable for applications with limited installation space.
- The combination of worm gearing and helical gearing provides a wider ratio range and higher efficiency than standard worm gear reducers.
- Finite-element optimized cast housing with a large-module worm gear design.
- Reinforced bearing configuration ensures higher reliability and longer service life.
Product Parameters
| Transmission Stages: | 2-stage |

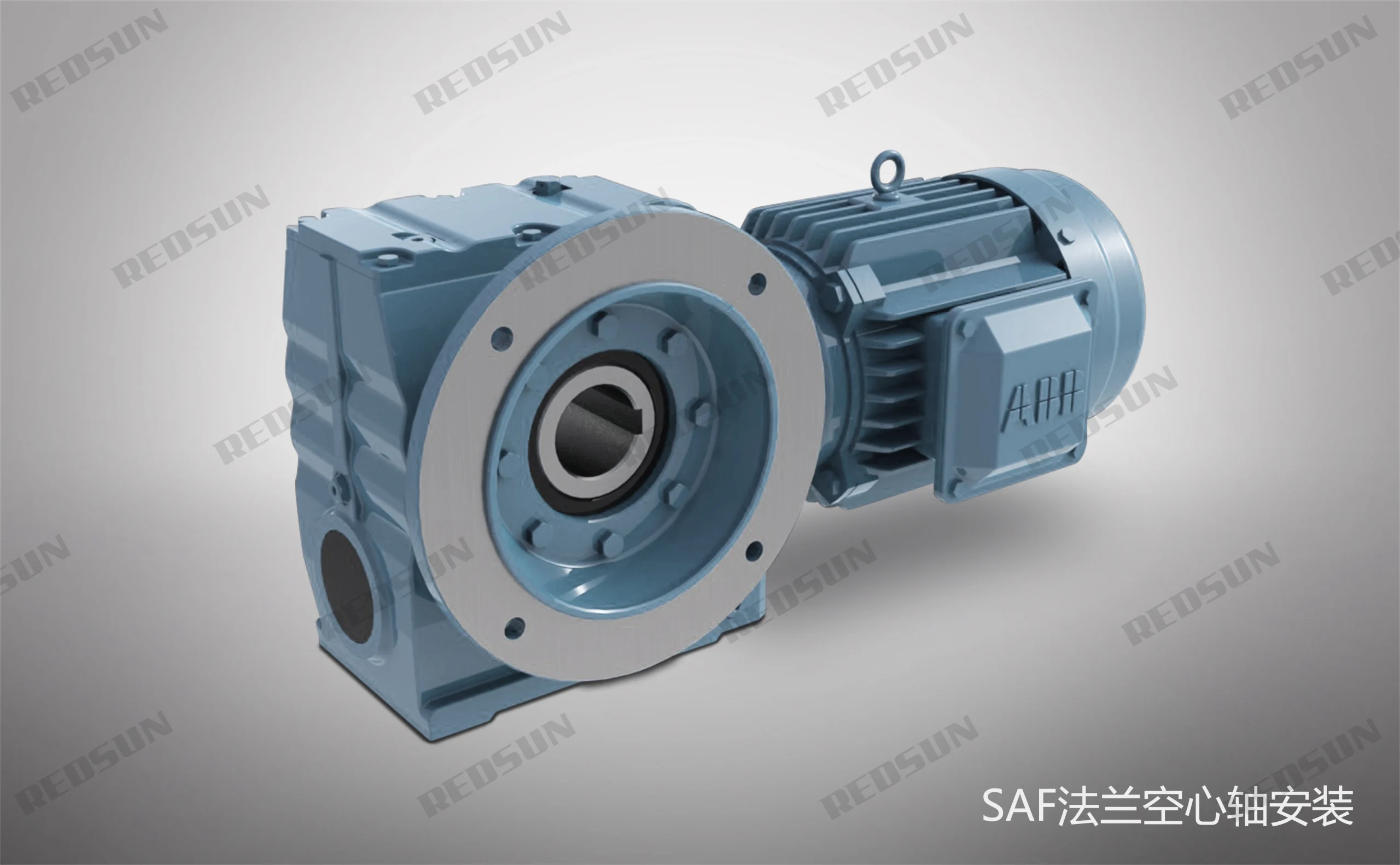

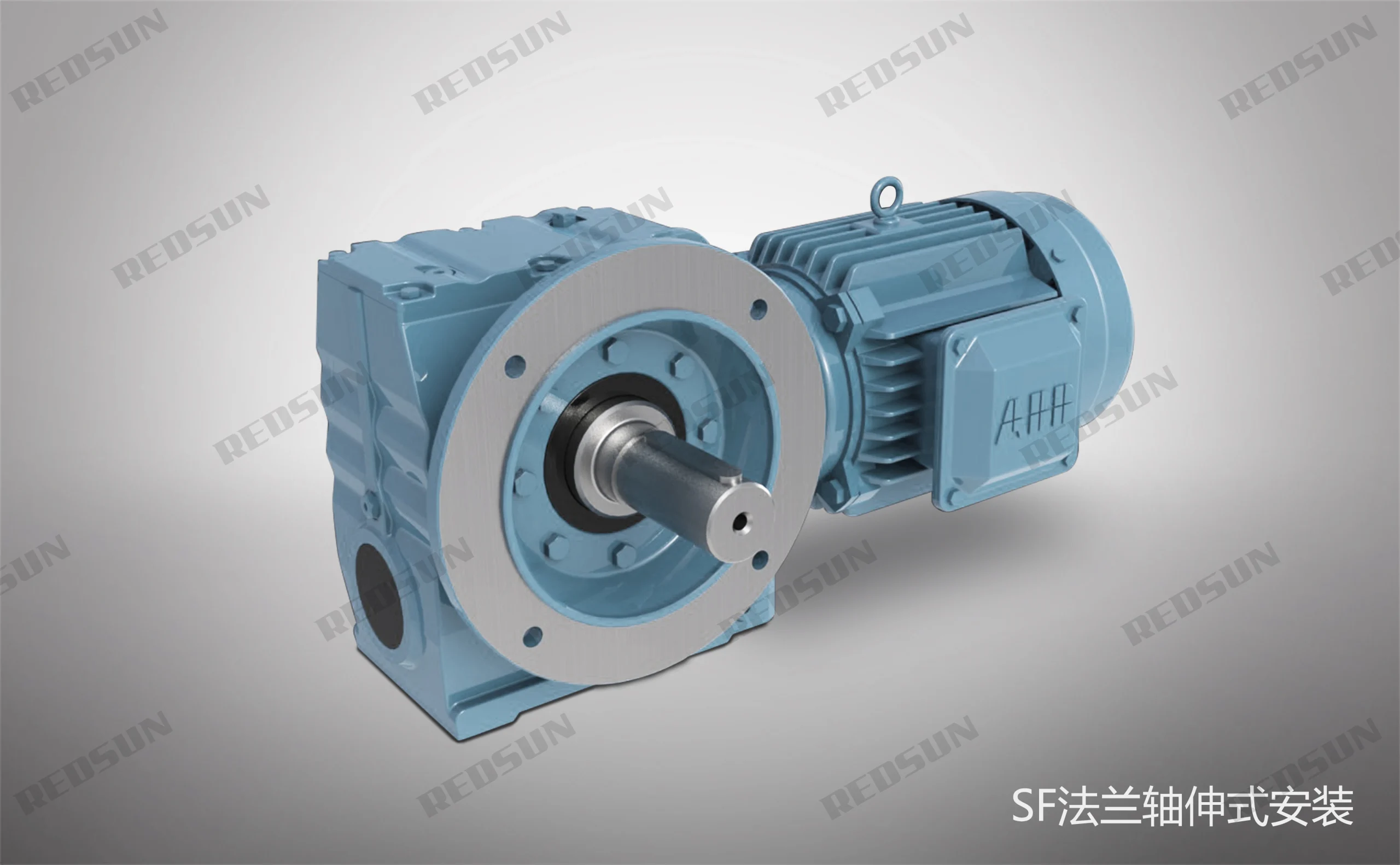

| Mounting Type: | Foot-mounted, flange-mounted and torque-arm mounted; can be combined with R series gear reducers. |

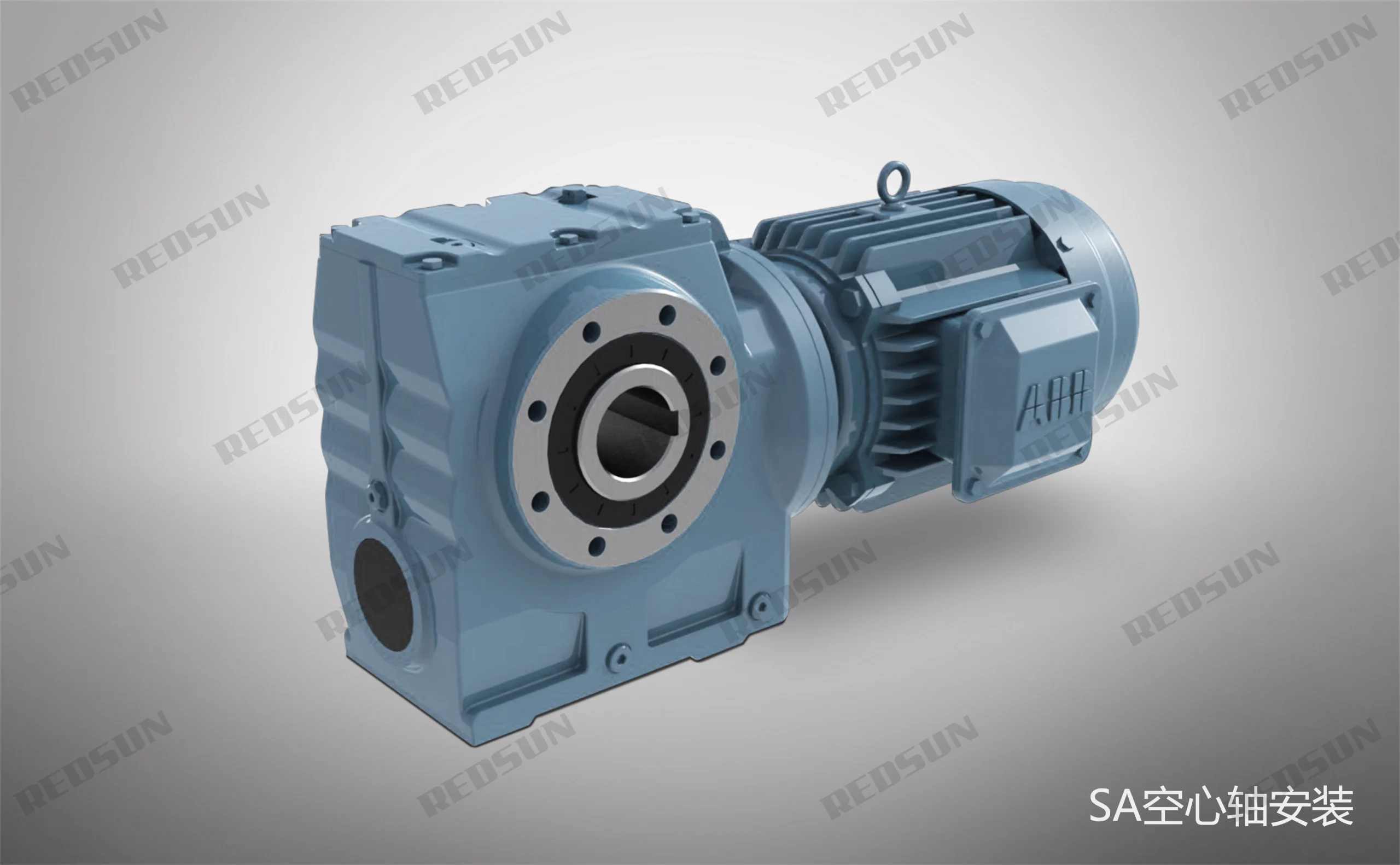

| Output Shaft: | Solid shaft or hollow shaft, including parallel key, spline and shrink disc options. |
| Output Torque: | Up to 4000 N.m |
| Nominal Ratio: | 8.04~290 |
| Input Power: | 0.18~22kW |
