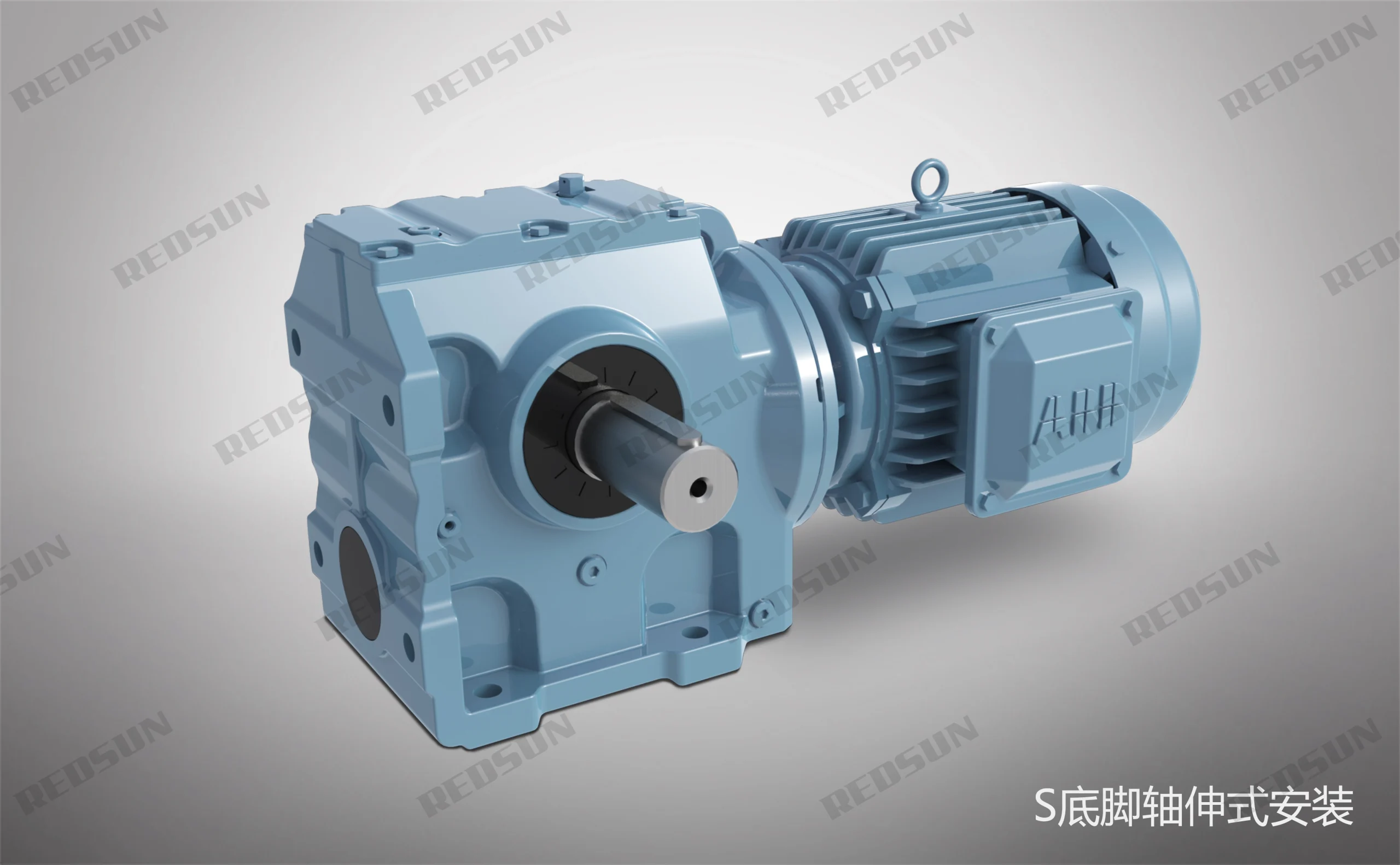

S Series Foot Mounted Worm Helical Gear Reducer, Shaft Extension Type

S series foot-mounted reducer with extended output shaft. Adopts integrated worm and helical gear structure for wider speed ratio range and higher efficiency. Optimized cast housing and reinforced bearings ensure stable performance and long service life, ideal for limited installation space.

Product Features

Suitable for applications with limited installation space.
The combination of worm gearing and helical gearing provides a wider ratio range and higher efficiency than standard worm gear reducers.
Finite-element optimized cast housing with a large-module worm gear design.
Reinforced bearing configuration ensures higher reliability and longer service life.

Product Parameters

Transmission Stages:	2-stage
Mounting Type:	Foot-mounted, flange-mounted and torque-arm mounted; can be combined with R series gear reducers.
Output Shaft:	Solid shaft or hollow shaft, including parallel key, spline and shrink disc options.
Output Torque:	Up to 4000 N.m
Nominal Ratio:	8.04~290
Input Power:	0.18~22kW

S Series Foot Mounted Worm Helical Gear Reducer, Shaft Extension Type

Product Parameters
