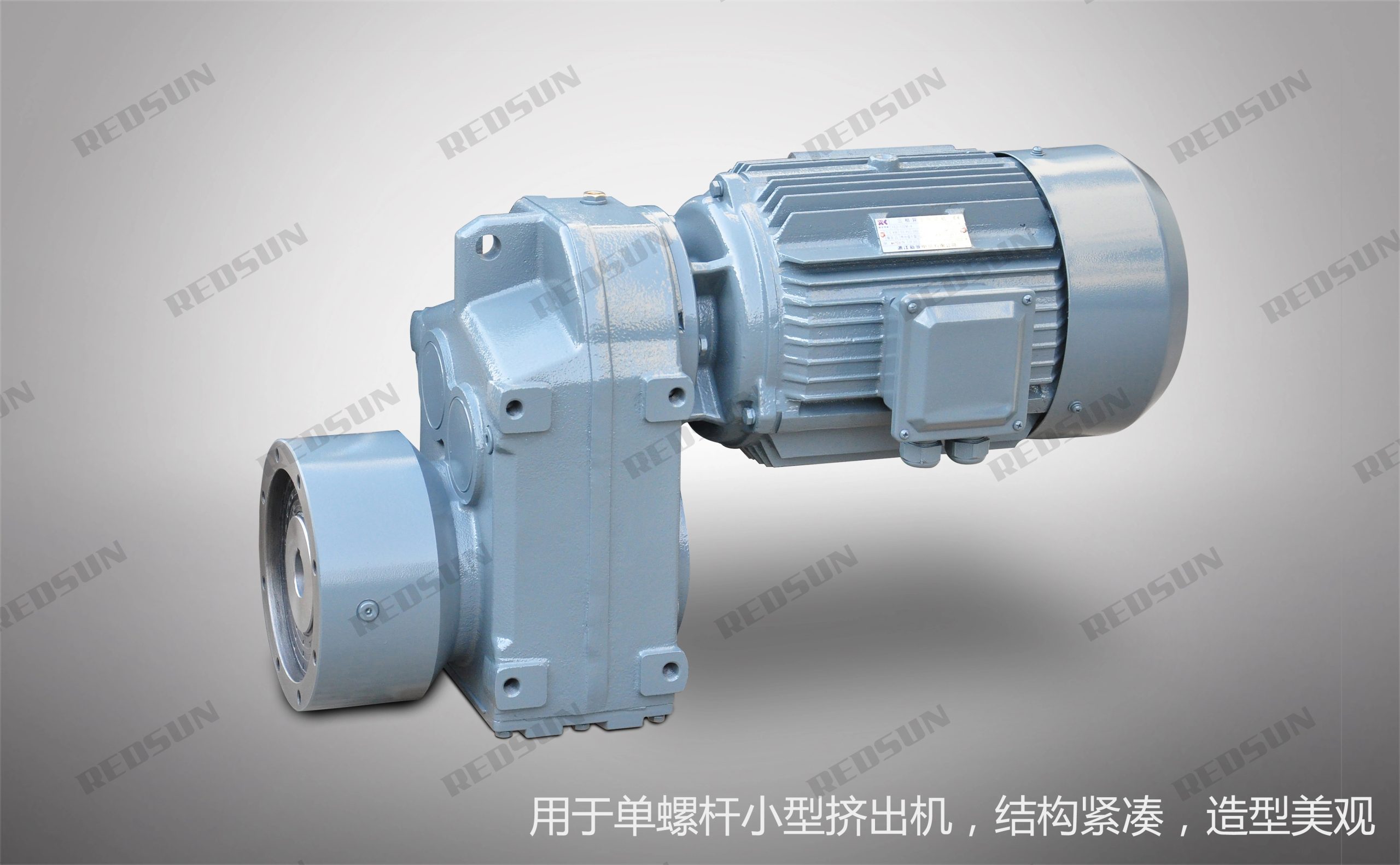

F Series Gear Reducer for Small Single-Screw Extruders

The F Series Gear Reducer is designed for small single-screw extruder applications. It features a compact structure, attractive appearance, stable transmission, strong thrust load capacity, and reliable performance for extrusion machinery.

Product Features

  • The gears are manufactured using carburizing, quenching, and high-precision profile modification processes, ensuring smooth transmission, low noise, and lightweight performance.
  • The housing adopts an integrated structure with excellent rigidity, minimizing the impact of deformation on gear meshing.
  • A dedicated forced lubrication and cooling system ensures reliability and long service life under continuous high-temperature operating conditions.
  • Overall performance is aligned with international extruder transmission solutions.
  • Supports direct motor connection solutions.

Product Parameters

Mounting Type: Horizontal, Vertical
Rated Power Range: 5.5–270 kW
Gear Ratio Range: i = 8 to 20
Output Shaft: Hollow shaft with keyway or spline options
